TECHNICAL SPECIFICATIONS

PRODUCTS RANGE

• WORM REDUCERS
• Normal worm Gear Box in 'U' 'V' & 'O' models size : 2 to 10 inch centre
• Adaptable Worm Gear Box 1.625 to 3 inch C.D.
• HELICAL MULTISTAGE GEAR BOXES
• Horizontal - 200 to 1000 mm
• FLEXIBLE GEAR COUPLINGS
• No. 100 to 110

MATERIAL

• Worm Gear
• Worm - Case hardened alloy steel
• Worm Wheel - phosphor Bronze.
• Gear Casing - Graded C.I. Casting.
• Worms are generated on special purpose worm milling machines, hardened and ground to close tolerance.
• Worm wheels are hobbed on precision hobbing machines with high accuracy hobs. Right hand thread are provided unless otherwise specified.

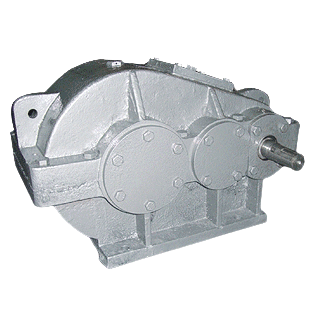

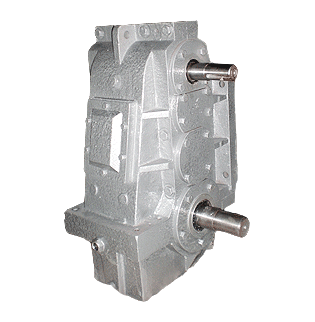

HELICAL GEAR BOXES

• Pinion - En-24 induction hardened Gears - 20 Mn Cr 5
• Gear Casing - Graded C.I. Casting / Plate Fabricated, Stress Relieved.

BEARINGS

The gear elements are supported on anguler contact / taper roller / ball / roller anti-friction bearings of ample margin of safety to allow adequate journal as well as thrust loads.

OTHER PRODUCTS

• Multistage Pressure Pump, Vacuum Pump & Centrifugal Pump.
• (Available in Stainless Steel & SG Iron )
• * Industrial Gears & other Industrial spares.
